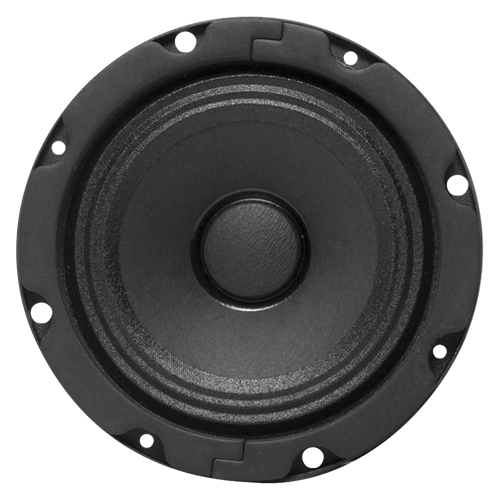

FC104
4" Standard Loudspeakers (UL Listed) 10W*, 8 Ohm
This compact, full-range, 4" (127mm) loudspeaker is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response. Model FC104 also offers a wide dispersion angle which reduces the number of loudspeakers necessary to achieve total coverage in low-level distribution systems. The 10-watt, 8-ohm model (without transformer) offers a frequency response range of 150 Hz to 17 kHz, sensitivity of 94dB (at 1 watt, 1 meter) and a dispersion angle of 135° (-6dB, 2 kHz octave band). The unit contains a 10 oz. (283g) ceramic magnet with a flux density of 10,500 gauss.
Tech Data
Specifications
Available in 8O, 25V, 70.7V, 70.7/25V and 100V Versions
Efficient Wide-Range Frequency Response
Ideal for Public Address and Background Music Installations
Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
Mounts a Large Selection of Atlas Sound 4" Grilles
Offers Proven Performance with Wide-Angle Sound Dispersion
Depth
2 1/4" (5.715 cm)
Diameter
4" (10.16 cm)
Shipping Weight
2.00 lbs (0.91 kgs)
Frequency Response
150 Hz - 17 kHz
Power Taps
8 Ohms
Speaker Type
High Compliance
Dispersion
135° (-6dB, 2 kHz Octave Band)
Sensitivity
94dB (at 1W / 1M)
