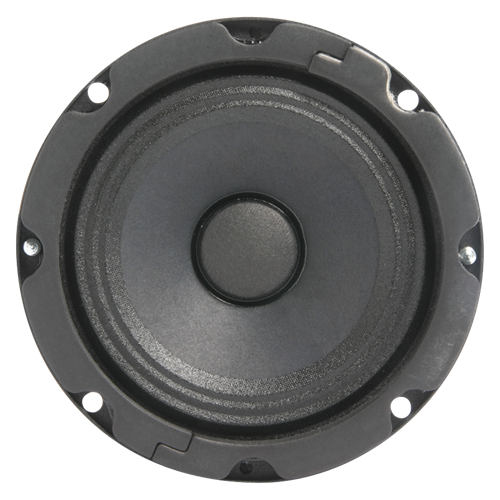

FC104T
4" Standard Loudspeakers (UL Listed) 70.7V, .5-8W xfmr
This compact, full-range, 4" (127mm) loudspeaker is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response.
Model FC104T also offers a wide dispersion angle which reduces the number of loudspeakers necessary to achieve total coverage in low-level distribution systems.
This new model features an all new transformer that provides tap setting from .5w to 8w providing easy system balancing.
Tech Data
Specifications
Efficient Wide-Range Frequency Response
Ideal for Public Address and Background Music Installations
Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
Mounts a Large Selection of Atlas Sound 4" Grilles
Offers Proven Performance with Wide-Angle Sound Dispersion
Versatile 8W, 70.7 V Transformer with .5 to 8W Taps
Depth
4" (10.16 cm)
Diameter
4" (10.16 cm)
Shipping Weight
22.00 lbs (9.98 kgs)
Frequency Response
150Hz - 17kHz (±5dB)
Power Taps
.5, 1, 2, 4, & 8W
Speaker Type
High Compliance
Dispersion
135º (-6dB, 2kHz Octave Band)
Sensitivity
94dB (at 1W / 1M)
UL Listed/Standard
1480
Data Sheet
Installation Sheet
