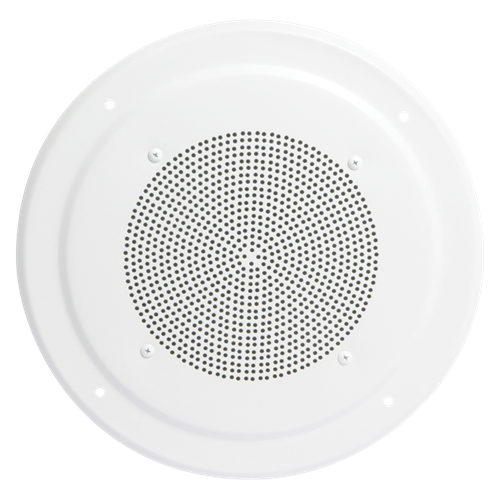

FD25M222W
Pre-assembled baffle, 5 oz Loudspeaker 25V-5W xfmr/M222W
C5A package pre-assembled with 25V transformer and model M222W contoured aluminum baffle. Perfect for health care applications
Tech Data
Specifications
25 Volt transformer offers .5, 1, 2, & 4 watt taps
Aluminum contoured baffle is painted white
Dual cone type driver
Factory-Assembled Loudspeaker Packages Reduce Installation Time and Expense
Mounts to standard tile bridges, enclosures, and plaster rings
Sensitivity 97dB 1w1m
Speaker package includes driver, transformer, baffle, and hardware bag
Depth
2 5/8" (6.6675 cm)
Diameter
8" (20.32 cm)
Shipping Weight
3.17 lbs (1.44 kgs)
Frequency Response
100 Hz - 10 kHz, ± 1.5dB
Power Taps
25V
Speaker Type
Treated Paper
Dispersion
105°
Sensitivity
97dB Peak, 94dB Average
Data Sheet
Baffle/Enclosure Mounting Guide
