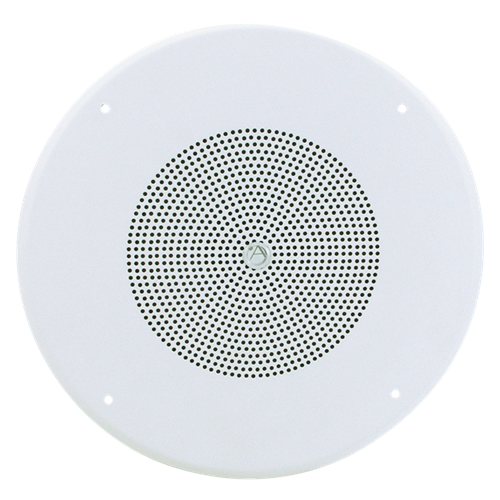

FD70W
Pre-assembled baffle, 5 oz Loudspeaker 70.7V-5W xfmr/62-8
Model FD70W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.
The FD70W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.
Speaker / transformer is factory installed on a 62-8 style baffle.
Tech Data
Specifications
Attractive white finish
Easy to order speaker/transformer/grill assembly
Mounts to standard tile bridges, enclosures, and plaster rings
Suited for any commercial paging or BGM application
Depth
2 5/8" (6.6675 cm)
Diameter
8" (20.32 cm)
Shipping Weight
3.67 lbs (1.66 kgs)
Frequency Response
100 Hz - 10 kHz, ± 1.5dB
Power Taps
.5, 1, 2, 5
Speaker Type
Treated Paper
Dispersion
105°
Sensitivity
97dB Peak, 94dB Average
Data Sheet
Baffle/Enclosure Mounting Guide
