FD72M222W
Pre-assembled baffle, 5 oz Loudspeaker 25/70.7V-4W xfmr/M222W
Model FD70M222W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill.
The FD70M222W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

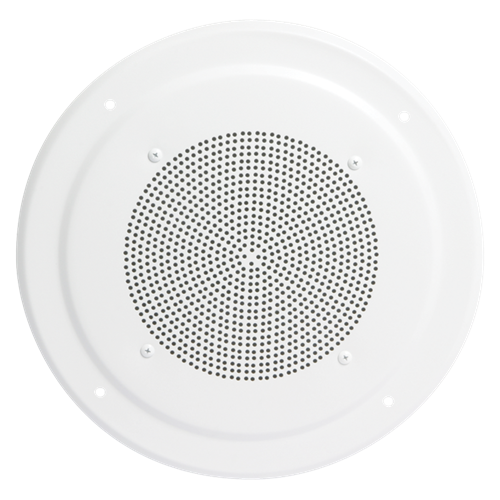

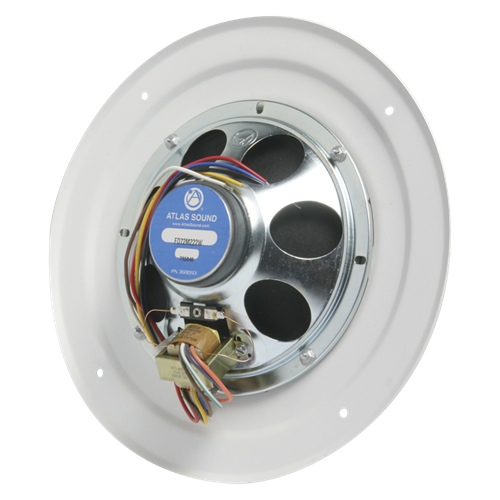

Speaker / transformer is factory installed on a M222W baffle featuring a contoured trim ring. Construction is of one-piece .030 aluminum. Finish is textured white.
Tech Data
Specifications
Aluminum contoured baffle
Attractive white finish
Easy to order speaker/transformer/grill assembly
Mounts to standard tile bridges, enclosures, and plaster rings
Suited for any commercial paging or BGM application
Depth
2 5/8" (6.6675 cm)
Diameter
8" (20.32 cm)
Shipping Weight
3.17 lbs (1.44 kgs)
Frequency Response
50 Hz - 18 Khz, ± 1.5dB
Power Taps
25/70.7V
Speaker Type
Treated Paper
Dispersion
105°
Sensitivity
97dB Peak, 94dB Average
Installation Sheet
Data Sheet
Baffle/Enclosure Mounting Guide
