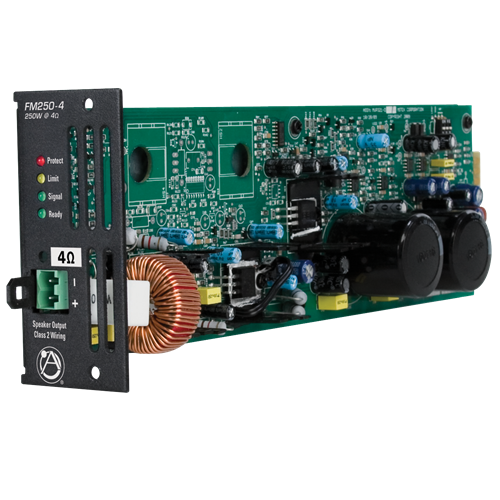

FM250-4
4Ω/8Ω Amplifier Card Module for Use with F6-MF
This amplifier card module is designed to be used with the F6-MF in any configuration from one module to six modules. Each module has 250W of output power and each features a defeatable limiter and high pass filter.
The F6 FM250 series power modules are designed to be 90% efficient allowing the amplifier to run cooler and consume less energy than conventional commercial amplifiers.
Tech Data
Specifications
Fixed 30Hz High Pass Filter
Selectable Input Sensitivity per Channel, 1V or 2V
30dB per Channel Voltage Gain
Balanced 20k Input Impedance
Burst Power 1kHz 8Ω
1 Channel
150W
2 Channels
140W Each
6 Channels
125W Each
Burst Power 1kHz 4Ω
1 Channel
300W
2 Channels
280W Each
6 Channels
250W Each
Continuous Power 1kHz 8Ω
1 Channel
135W
2 Channels
125W Each
6 Channels
95W Each
Continuous Power 1kHz 4Ω
1 Channel
270W
2 Channels
250W Each
6 Channels
170W Each
Frequency Response
30Hz - 20kHz
Signal to Noise Ratio
-90dB Below Rated Output
Height
3.4" (86mm)
Width
1.5" (38mm)
Depth
10.4" (264mm)
Weight
0.8 lbs. (0.36kg)
Data Sheet
