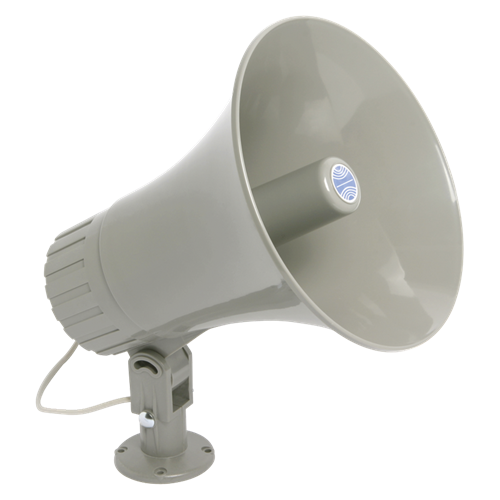

GA-30T
Re-entrant Horn Loudspeaker 30W
The GA-30T loudspeaker is a utility horn perfectly suited for voice paging and music transmission.
Double re-entrant horn construction optimizes loudspeaker output to penetrate ambient sound levels. This 30-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.
GA-30T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments.
Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21 gauge 18" color coded wire leads for matching polarity and loudspeaker connection.
Entire assembly is gray with silver colored hardware
Tech Data
Specifications
Dual Voltage, Knob-Adjustable Impedance Selection for 25/70.7V Line Connection
Multi-Function, Re-Entrant Horn Loudspeakers Offer Efficient Sound Penetration and Dispersion for Paging, Music and Intercom Use
Sturdy Construction for Long-Term Indoor and Outdoor Use
Depth
12" (30.48 cm)
Diameter
10" (25.4 cm)
Shipping Weight
4.67 lbs (2.12 kgs)
Frequency Response
500 - 3,000 Hz (+5dB)
Power Taps
2, 4, 8, 15, 30W @ 70.7V
Dispersion
60°
Power Rating
30 watts
Sensitivity
103dB
Data Sheet
