HT167
High-Quality Transformer 16W (70.7V)

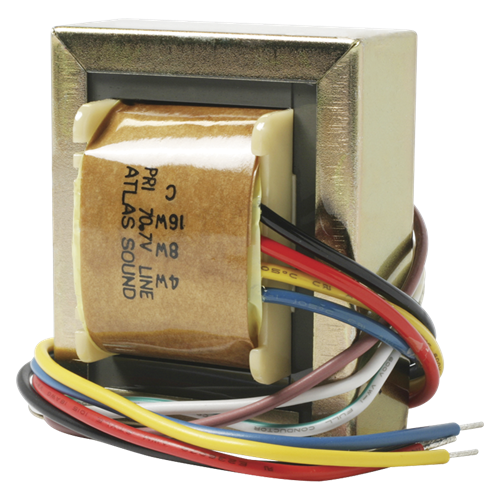

Model HT167 high quality line matching transformer features 0.6dB insertion loss to assure efficient loudspeaker matching in distributed 70.7-volt systems.
Unit is constructed of audio grade laminations and has primary taps at 4, 8 and 16 watts. The secondary impedance is 4 and 8 ohms.
Frequency response is +1dB from 40 Hz to 15 kHz.
Tech Data
Specifications
Constructed with audio grade laminations
Frequency response is +/- 1 dB from 40Hz to 15KHz
High quality matching transformer with only 0.6dB insertion loss
Primary taps of 4, 8, & 16 watts
Secondary outputs offer both 4 & 8 ohm impedance
Height
3 1/8" (7.9375 cm)
Width
20 9/16" (6.51002 cm)
Depth
10 1/16" (2.61874 cm)
Shipping Weight
2.50 lbs (1.13 kgs)
Frequency Response
+1dB-40Hz-15KHz
Power Taps
4, 8 & 16
Power Rating
16W
Primary Voltage
70.7
Data Sheet
