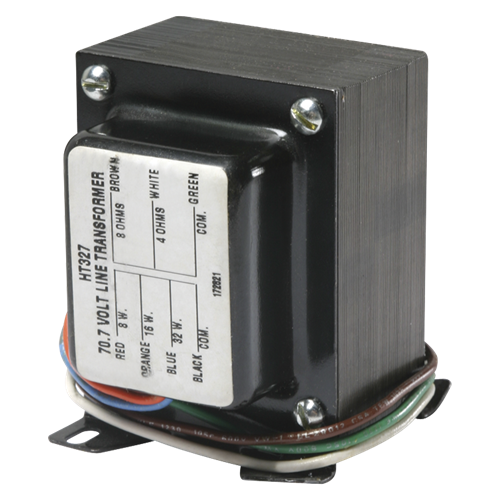

HT327
High-Quality Transformer 32W (70.7V)
The HT327 features high power handling with minimal insertion loss and wide frequency response to provide quality line matching of loudspeakers in high power systems.
Unit is constructed of audio grade laminations and offers primary taps at 8, 16 and 32 watts with secondary impedance of 4 and 8 ohms.
Insertion loss does not exceed 0.6dB and the unit operates within a frequency range of +1dB from 30 Hz to 15 kHz.
The transformer is designed for external mounting to surfaces other than the loudspeaker.
Tech Data
Specifications
Constructed with audio grade laminations
Frequency response is +/- 1 dB from 30Hz to 15KHz
High power handling unit
High quality matching transformer with only 0.6dB insertion loss
Primary taps of 8, 16, & 32 watts
Secondary outputs offer both 4 & 8 ohm impedance
Height
3 1/4" (8.255 cm)
Width
2 1/2" (6.35 cm)
Depth
3 1/4" (8.255 cm)
Shipping Weight
3.50 lbs (1.59 kgs)
Frequency Response
+1dB-30Hz-15KHz
Power Taps
8, 16 & 32
Power Rating
32W
Primary Voltage
70.7
