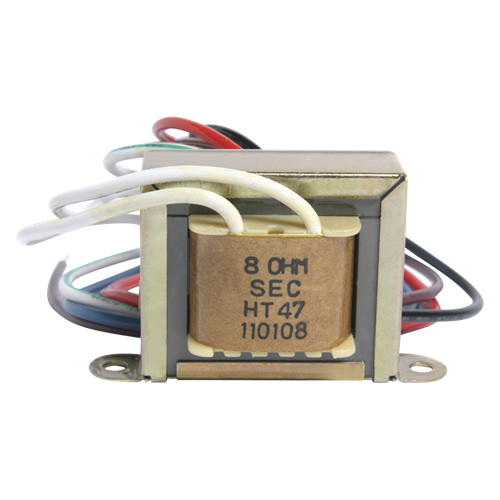

HT47
High-Quality 4 Watt Audio Transformer 70.7V
The HT47 is a Industry standard, high quality transformer with audio grade laminations.
The unit offers low insertion loss (not to exceed 1.0dB) and full-range frequency response (+1dB from 60 Hz to 12 kHz).
Primary taps are .5, 1, 2 and 4 watts. Secondary impedance is 8 ohms.
Model HT-47 is designed for use with 70.7-volt lines.
Tech Data
Specifications
Constructed with audio grade laminations
Designed for use on 70 volt lines
Frequency response is +/- 1 dB from 60Hz to 12KHz
High quality matching transformer with only 1.0 dB insertion loss
Primary taps of .5, 1. 2. & 4 watts
Height
1 5/8" (4.1275 cm)
Width
1.969" (5.00126 cm)
Depth
3/4" (1.82626 cm)
Shipping Weight
1.02 lbs (0.46 kgs)
Frequency Response
+1dB-60Hz-12KHz
Power Taps
.5, 1, 2 & 4
Power Rating
4W
Primary Voltage
70.7
Data Sheet
