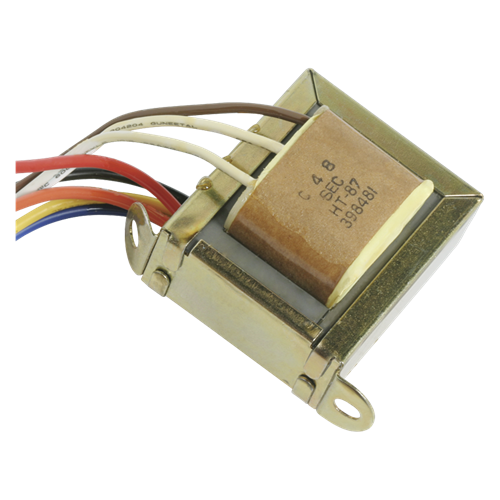

HT87
High-Quality 8 Watt Audio Transformer 70.7V
The HT87 is a Industry standard, high quality transformer with audio grade laminations.
The unit offers low insertion loss (not to exceed 1.0dB) and full-range frequency response (+1dB from 60 Hz to 12 kHz).
Primary taps are 1, 2, 4, and 8 watts.
Secondary impedance is 4Ω and 8Ω.
Model HT-87 is designed for use with 70.7-volt lines.
Tech Data
Specifications
Constructed with audio grade laminations
Frequency response is +/- 1 dB from 50Hz to 15KHz
High quality matching transformer with only 0.6dB insertion loss
Primary taps of 1, 2, 4, & 8 watts
Height
2 3/8" (6.0325 cm)
Width
1.969" (5.00126 cm)
Depth
10 1/16" (2.61874 cm)
Frequency Response
50Hz-15KHz (±1dB)
Power Rating
8 Watts
Secondary Impedance
4Ω and 8Ω
Power Taps
1, 2, 4 & 8 Watts
Primary Voltage
70.7V
Data Sheet
