I128SYS

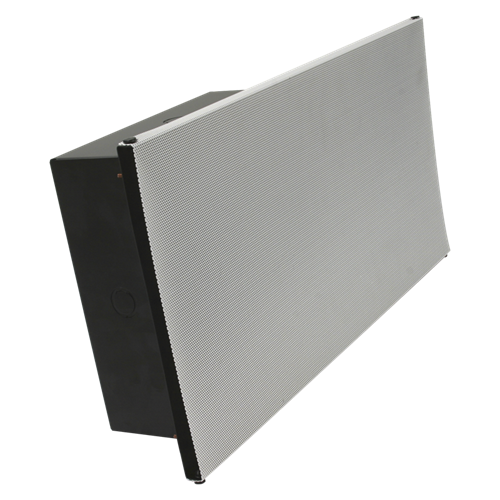

IP Addressable 1' x 2' Loudspeaker System for Suspended Ceiling Systems
Model I128SYS from Atlas Sound consists of a factory assembled loudspeaker, baffle, tile support, enclosure system with PCB amp/control board securely mounted to the rear of the speaker via concealed weld studs.
The amp / control board is capable of producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC minimum power provided by IEEE 802.3 AF compliant POE switches. (local 12-18VDC PSUs may also be used instead of POE switches). Interconnection is via a board mounted female RJ-45 connector.
The industry standard C10A loudspeaker used in the I128SYS is a dual cone 8" (205mm) loudspeaker with a 10oz (260g) ceramic magnet. It includes a curvelinear paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" (25mm) diameter copper voice coil with aluminum former for better heat dissipation.
The 18 gauge construction of the metal baffle provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.
Tech Data
Specifications
Use with ControlKom® or InformaCast® software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
Loudspeakers are also compatible with SIP (session initiation protocol) VoIP systems. Contact Atlas Sound for SIP configuration info.
Highly efficient 10 oz dual cone loudspeaker system provides 94 dB average SPL @ 1W/1M and is capable of 103 dB @ 1 meter via the rated power of the internal IP addressable amplifier
Wide frequency response of 86 Hz - 8 kHz (-3 dB) is perfect for speech and general messaging playback
105° dispersion in the 2 kHz octave band (-6 dB)
UL60950-1 Listed for Information Technology Equipment
NOT COMPATIBLE WITH CONTROLKOM 2.0 USE MODEL IDT12-CK FOR USE WITH CONTROLKOM 2.0
Height
23.67" (601mm)
Width
11.94" (303mm)
Depth
4.89" (124mm)
Shipping Weight
12.80 lbs (5.81 kgs)
Connector Type
RJ-45
Sensitivity (SPL @ 1W/1M)
94dB
Dispersion
105°
UL Listied
60950-1, 2043
