I8S
IP Addressable loudspeaker system
(enclosure sold separately)

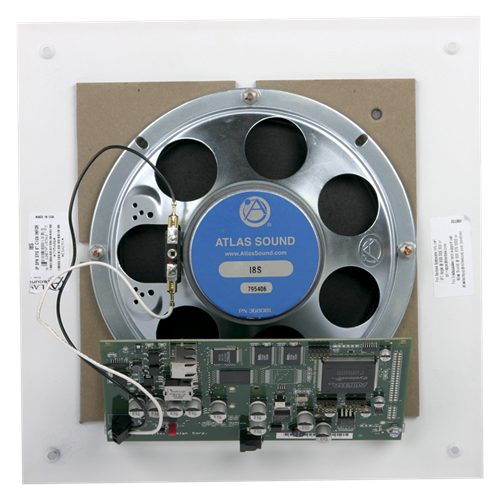

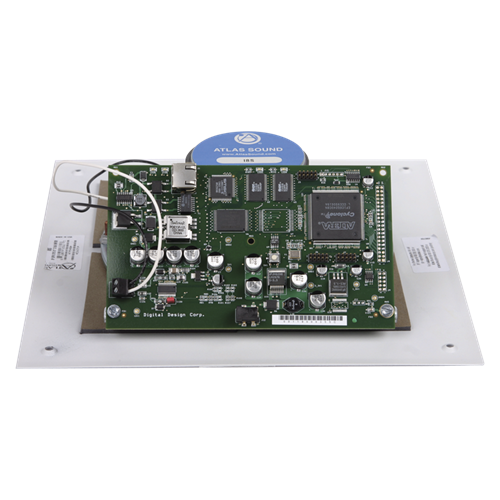

Model I8S from Atlas Sound consists of a factory assembled loudspeaker/ baffle with PCB amp/control board securely mounted to the rear of the baffle via concealed weld studs.
The amp/control board is capable of producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC minimum power provided by IEEE 802.3AF compliant POE switches. (local 12-18VDC PSUs may also be used instead of POE switches). Interconnection is via a board mounted female RJ-45 connector.
The industry standard C10A loudspeaker used in the I8S is a dual cone 8" (205mm) loudspeaker with a 10oz (260g) ceramic magnet. It includes a curvelinear paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" (25mm) diameter copper voice coil with aluminum former for better heat dissipation.
The 18 gauge construction of the metal baffle provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.
Tech Data
Specifications
Use with ControlKom® or InformaCast® software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
Loudspeakers are also compatible with SIP (session initiation protocol) VoIP systems. Contact Atlas Sound for SIP configuration info.
Highly efficient 10oz dual cone loudspeaker system provides 94dB average SPL @ 1W/1M and is capable of 103dB @ 1 meter via the rated power of the internal IP addressable amplifier
Wide frequency response of 86Hz to 8kHz (-3dB) is perfect for speech and general messaging playback
UL60950-1 Listed for Information Technology Equipment
105° dispersion in the 2 kHz octave band (-6 dB)
NOT COMPATIBLE WITH CONTROLKOM 2.0 USE MODEL IDT12M-CK FOR USE WITH CONTROLKOM 2.0.
Height
11 1/2" (29.21 cm)
Width
11 1/2" (29.21 cm)
Depth
4 1/4" (10.6934 cm)
Shipping Weight
5.50 lbs (2.49 kgs)
Connector Type
RJ-45
UL Listied
60950-1
