IHVP
IP Addressable vandal / weather resistant loudspeaker system
(enclosure sold separately)

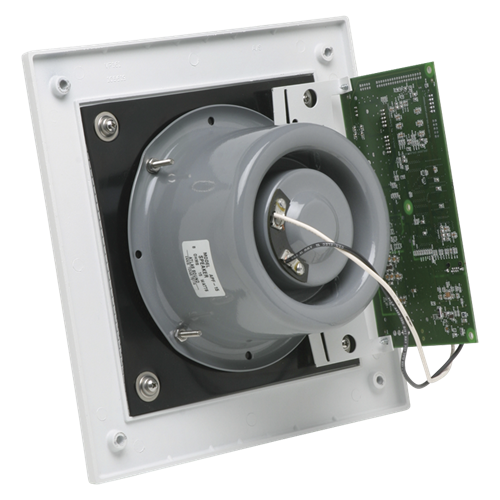

Model IHVP from Atlas Sound consists of a factory assembled horn loudspeaker/baffle with PCB amp/control board securely mounted to the rear of the baffle via concealed weld studs.
The amp/control board is capable of producing 9 Watts RMS into the 8 Ohm loudspeaker with 9VDC minimum power provided by IEEE 802.3 AF compliant POE switches (local 12-18VDC PSU’s may also be used instead of POE switches). Interconnection is via a board mounted female RJ-45 connector.
The industry standard APF-15 loudspeaker used in the IHVP is a highly efficient 15 Watt compression driver with a proven record of outstanding service reliability. A double re-entrant design provides superior audibility of voice and tone signaling.
The vandal resistant, cast aluminum alloy baffle provides
security and durability in commercial applications. A perforated 22-gauge stainless steel metal screen is provided over the loudspeaker to maximize protection and performance by allowing the optimum percentage of open area forward of the loudspeaker.
The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary vandal resistant
mounting screws.
Tech Data
Specifications
Use with ControlKom® or InformaCast® software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
Loudspeakers are also compatible with SIP (session initiation protocol) VoIP systems. Contact Atlas Sound for SIP configuration info.
Frequency response of 700Hz to 5.5kHz (+/-5dB) is perfect for high intelligibility speech and general messaging playback
Highly efficient APF horn loudspeaker system provides 104dB average SPL @ 1W/1M and is capable of 113dB @ 1 meter via the rated power of the internal IP addressable amplifier
UL60950-1 Listed for Information Technology Equipment
95° dispersion in the 2kHz octave band (-6dB)
NOT COMPATIBLE WITH CONTROLKOM 2.0 USE MODEL IDT12M-CK FOR USE WITH CONTROLKOM 2.0.
Height
10 3/4" (27.305 cm)
Width
10 3/4" (27.305 cm)
Depth
4 7/8" (12.319 cm)
Shipping Weight
5.50 lbs (2.49 kgs)
Connector Type
RJ-45
UL Listied
60950-1
