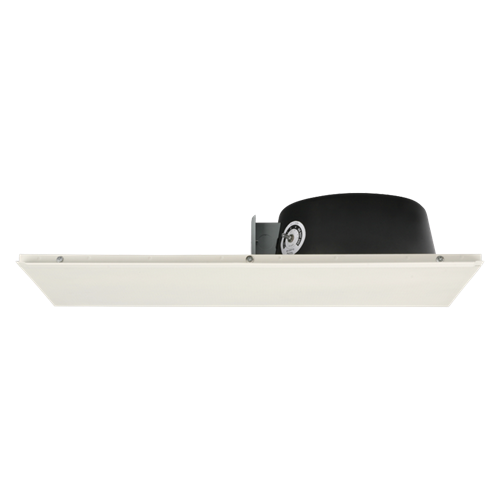

IS125SYS
1' x 2' Speaker Package With Enclosure
The IS125SYS from Atlas Sound combines ease
of installation with superb intelligibility for speech and music reproduction.
The 1' x 2' footprint allows quick installation into 2' x 2' or 2' x 4' acoustic tile ceilings.

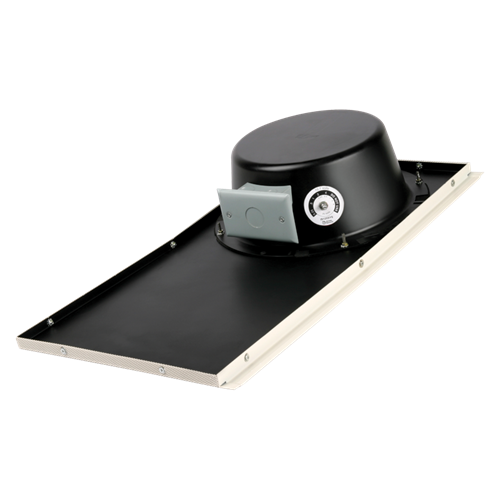

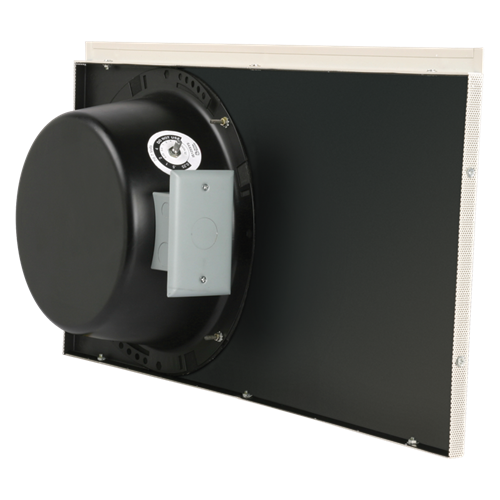

The E.O. box (with cover) is smartly positioned on the side of the conical enclosure to facilitate rigid or flexible conduit. An external tap selector switch (located on the side of the enclosure) allows for easy system tuning by providing quick installer access to the 70.7V tap settings ranging from .25 to 4 watts.
Tech Data
Specifications
10oz 8" dual cone speaker with 25V/ 70.7V transformer
External tap selector switch
Integral E.O. box for conduit or plenum wire termination
Low profile conical enclosure
Height
23?" (60.6425 cm)
Width
12?" (32.7025 cm)
Depth
4½" (11.43 cm)
Shipping Weight
12.00 lbs (5.44 kgs)
Frequency Response
85Hz-8kHz (± 5dB)
Power Taps
.25, .5, 1, 2, 4 Watts
Power Taps
.25, .5, 1, 2, 4 Watts
Speaker Type
8", 10oz Dual Cone
Dispersion
105° - 2kHz Octave Band (-6dB)
Sensitivity
97dB (1W/1M)
UL Listed/Standard
1480 & 2043
