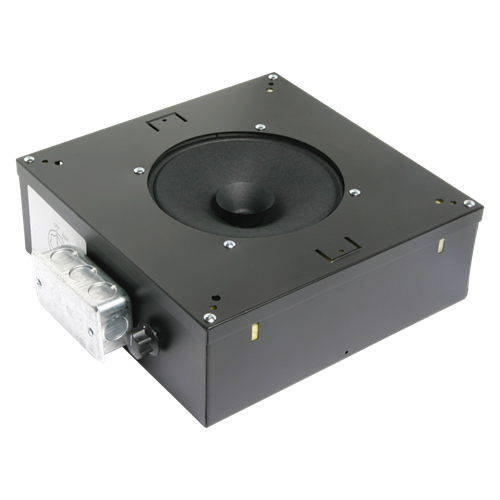

M812-S2T7-BX-RS
8" Speaker With 529 Cu. In. Channel Rail Enclosure
M812-S2T7-BX-RS square enclosure offers a cubic content of 529 cu. in. (.087 m3) C10A, 8" Dia. loudspeaker and a 70.7V (T7) transformer. Loudspeaker mounting plate contains no perforated grille and thus positions the speaker cone as fully exposed.
Tech Data
Specifications
Completely Assembled and Wired for Easy Installation
Finished in Black Epoxy
Specifically Designed for Installation in Suspended Tile Ceiling Systems
Height
4" (10.16 cm)
Width
11 5/8" (29.5275 cm)
Depth
11 5/8" (29.5275 cm)
Shipping Weight
9.00 lbs (4.08 kgs)
Frequency Response
100 Hz - 10 kHz, ± 1.5dB
Power Taps
.5, 1, 2, 5
Speaker Type
8" Dual Cone
Dispersion
Upward
Sensitivity
97dB Peak, 94dB Average
UL Listed/Standard
1480
Data Sheet
Sound Masking Overview Data
