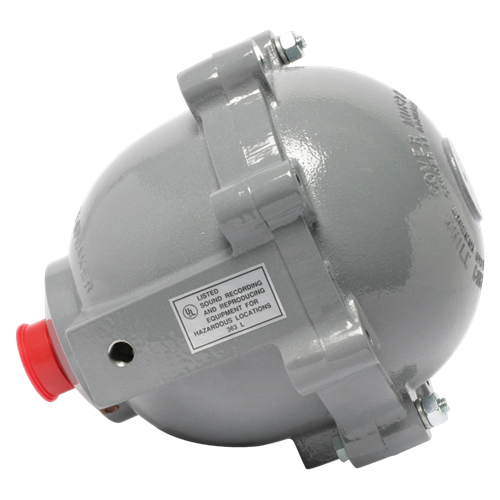

MLE-1T
UL Listed Explosion-Proof Driver 30 W, 70.7V Xfmr.
The 30-watt MLE-1T Driver is protected within a rugged die-cast aluminum housing and includes a factory-installed, internally mounted transformer.
For termination the unit is equipped with 1/2" conduit access and an adjustable mounting bracket.
Optional projector horns for use with the MLE-1T are available in two styles to meet dispersion requirements. Model HLE/MLE-30 is a high-quality, polycarbonate projector that creates a 120 ° x 60 ° pattern for wide area coverage. Model HLE/MLE-32 is a spun aluminum bell providing a 95 ° circular distribution emphasis.
Tech Data
Specifications
Choice of 60 or 30 Watt High-Intelligibility Driver in Cast Aluminum Housing
Efficiency of Reflex-Style Projectors with Wide Angle or Circular Sound Dispersion
Explosion-Proof Loudspeakers for Signal and Communications Systems
Listed by UL and CSA for Use in Hazardous/Combustible Environments (noted models)
Height
6" (15.24 cm)
Width
14" (35.56 cm)
Depth
17 1/2" (44.45 cm)
Shipping Weight
14.50 lbs (6.58 kgs)
Frequency Response
300 Hz- 14 kHz
Power Taps
1.8, 3.7, 7.5, 15, 30W @ 70.7V
Power Rating
30 Watts Cont.
Sensitivity
107dB
UL Listed/Standard
1203, 1604, 2279, 913, NFPA 503
Installation Sheet
Installation Sheet
Data Sheet
