PA702
Pole Mount 2 Channel 70W Amplifier System
The PA702 pole-mount amplifier system from Atlas Sound provides an innovative solution for display systems that require local sound reinforcement.
Since the first projector was pole mounted in a ceiling, there has been a real quandary about how to best provide local amplification. The PA702 pole mount amplifier is a very elegant solution to solve this issue.

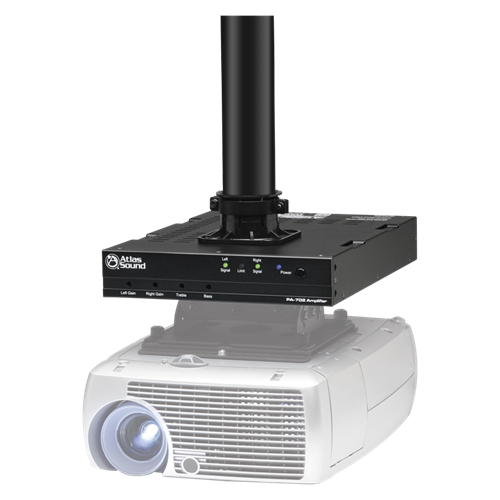

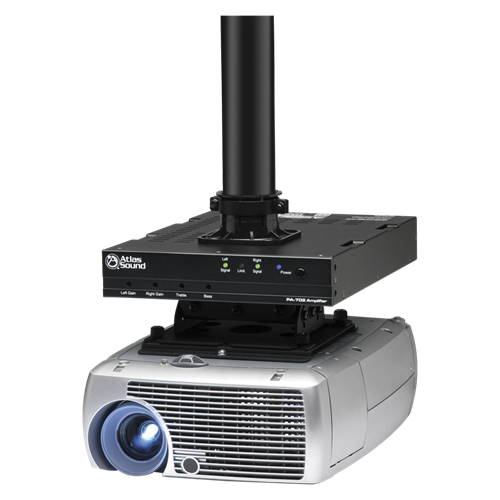

The PA702 includes a unique mounting pole installation process via a sealed hole incorporated into the chassis design. Simply install the projector mounting pole, align the amplifier chassis hole with the 1.5" mounting tube, and clamp the unit at the desired height above the projector mount with the innovative pole clamp system included with the PA702. Afterwards, install the projector as normal. As a side benefit, the chassis "hole" mounting system provides the necessary security to help deter theft.
Output is a strong 70 watts x 2 from the efficient rail tracking Class A/B and switch mode power supply technology.

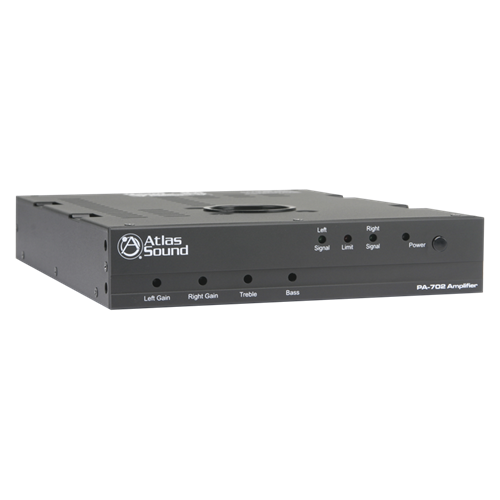

The PA702 includes a host of other innovative features including an accessory outlet with AC current sense that allows the amplifier to respond instantly from stand-by mode when the projector is powered on remotely. Also featured are separate audio sense turn-on, balanced phoenix style and unbalanced RCA input connections, front panel status LEDs, and recessed screwdriver adjustable tone and level controls.
The slim profile chassis is also designed to work in a rack mount configuration. An optional rack mount kit allows single or dual mounting of the PA702 in a 1RU high configuration.
Tech Data
Specifications
Includes features perfectly suited for projection systems.
Innovative, patent pending "through chassis" pole mounting system makes installation a breeze and keeps the amplifier secure.
Proven BASHT class A/B amplifier design will provide years of trouble free operation.
Optional Rack Mount Kit - PA702-RMK
Height
1 3/4" (4.445 cm)
Width
8 1/2" (21.59 cm)
Depth
11 1/2" (29.21 cm)
Shipping Weight
5.50 lbs (2.49 kgs)
Frequency Response
30Hz - 20 KHz +/-3dB
Connector Type
Phoenix and RCA
Output Power
70 Watts per channel @ 8ohms RMS 1% THD
Rack Spaces
1 x .5 wide
UL Listed/Standard
60065-ROHS 2006 Compliant
Optional Rack Mount Kit
PA702-RMK
