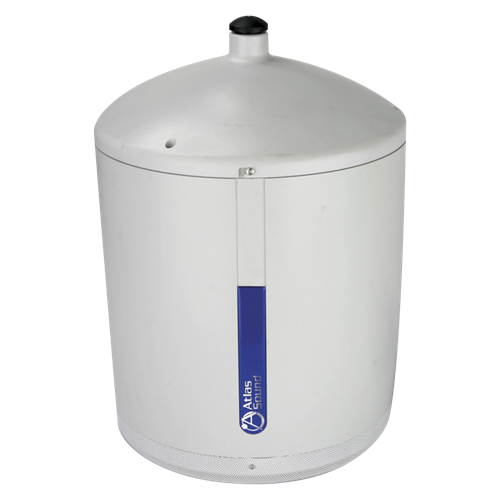

PM8GD-W
8" 2-way High Efficiency Pendent Mount Speaker
Model PM8GD-W uses the popular Atlas Sound GD series coaxial driver to provide familiar response and high efficiency while retaining economy when high density speaker counts are required in page only applications.
Tech Data
Specifications
70.7V taps @ 1, 2, 4, 8 Watts and 8O direct input via concealed terminal block
8" GD87 driver provides 120 degree (60 degree off-axis) coverage in the 2kHz octave band
3 Meters of 2mm Cable & Mounting Hardware Included
Compatible with standard 3/4" ceiling fan hardware
Extreme high efficiency (96dB 1W/1M) allows for lower tap settings and more loudspeakers per amp channel in many installations
Height
16 5/8" (42.2148 cm)
Diameter
12 1/4" (31.115 cm)
Shipping Weight
14.00 lbs (6.35 kgs)
Power Taps
1, 2, 4, 8 Watts and 8Ω
Speaker Type
Coaxial (Treated Paper)
Dispersion
105° (2kHz Octave Band, -6dB Points)
Power Rating
16 Watts
Sensitivity
96dB Average
