QPLATE40

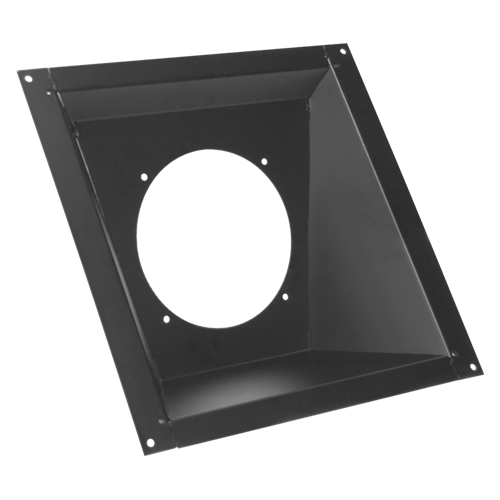

Enclosure Mounting Plate 40 Degree Offset

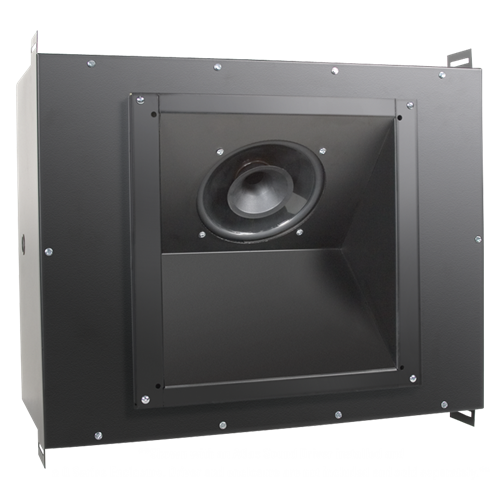

This unique mounting plate is designed for mounting an Atlas Sound 8" compression driver full range speaker into our 12" Q series enclosures at a 40° angle.
Tech Data
Specifications
Allows Mounting Of 8" Loudspeaker (8CXT60 or FA138) In A 12" Q Ser. Enclosure
Compensation System For 40 Degree Cathedral Ceilings
Use With Q4612 (Or Larger Enclosure)
Height
14 5/8" (37.1602 cm)
Width
14 5/8" (37.1602 cm)
Depth
5 7/8" (14.8336 cm)
Shipping Weight
5.00 lbs (2.27 kgs)
Speaker Size
8
