SM42T-B

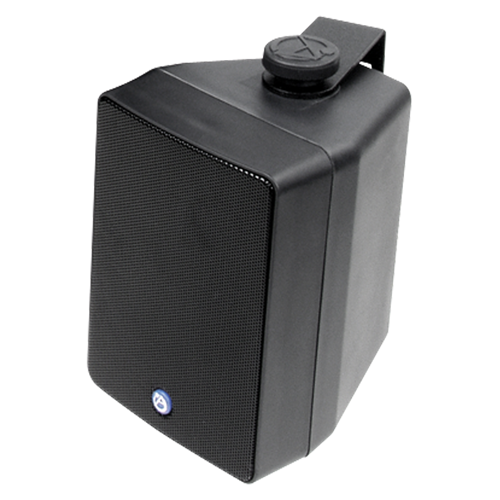

4" 2-Way Weather Resistant Multi-Purpose Speaker With 16-Watt 70.7V/100V Internal Transformer - Black
Use surface-mount Atlas Sound SM42T Series loudspeaker systems for commercial, professional and residential applications or where high-fidelity sound and weather-resistance is desired.
Full-range frequency response makes these systems ideal for indoor and outdoor installation, in monaural and stereo foreground or background music systems, and for applications in boutiques/shops, restaurants/cafes, corporate AV applications and houses of worship.
Multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service.
Tech Data
Specifications
1" FerrofluidT Cooled Dome Tweeter & Highly Efficient 4" Polypropylene Woofer
All 1/4"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
Atlas Sound POLYGUARDT High Frequency Protection Circuit
Available in Black or White
Color Matched Heavy-duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
Five-Year Warranty
OMNIMOUNTT 10 Series Compatible
Screwdriver Adjustable 16-Watt 70.7V/100V Transformer (may be bypassed for 8-ohm operation)
TRX WAVEGUIDET- Constant Directivity Style High Frequency Wave Guide System
Weather-Resistant Construction For Year-round Indoor or Outdoor Use
Height
7" (17.78 cm)
Width
5" (12.7 cm)
Depth
5 15/16" (15 cm)
Shipping Weight
5.00 lbs (2.27 kgs)
Frequency Response
115Hz to 16kHz
Power Taps
2, 4, 8, 16
Speaker Type
Surface Mount
Dispersion
90°H x 90°V
Sensitivity
88dB
Data Sheet
Owners Manual
CAD Drawing
