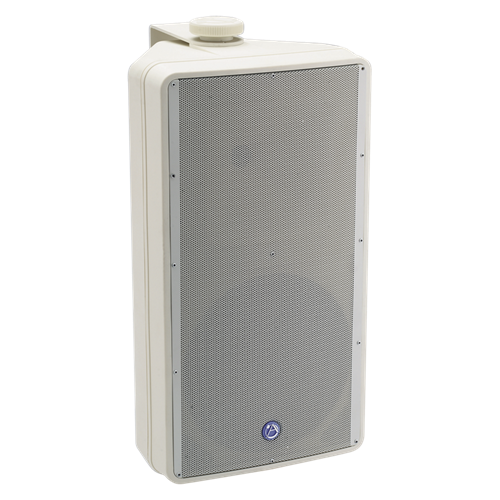

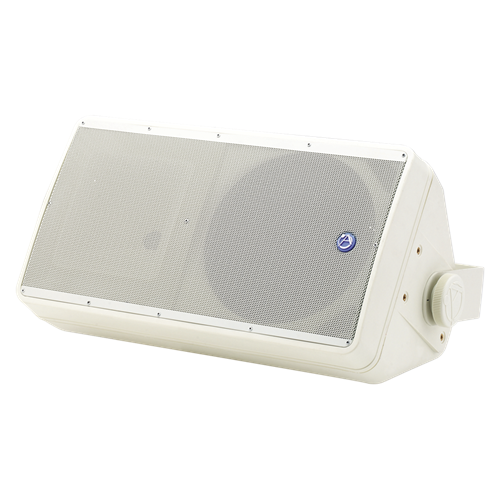

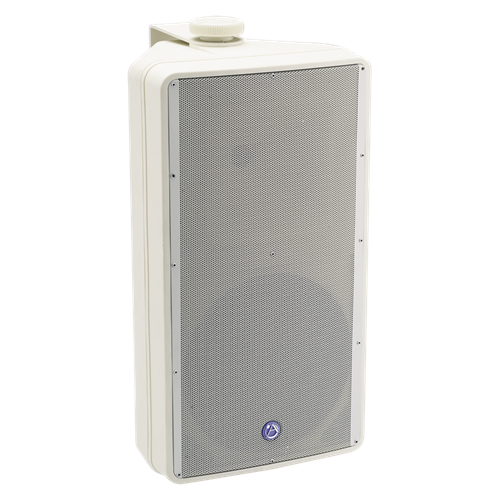

SM82T-WH
8" 2-Way Weather Resistant Speaker System w/ 60-Watt 70.7V/100V Internal Transformer (New 8O Bypass) - White
Environment-resistant SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure.
System components consist of a highly efficient woofer section and 1" exit compression driver frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the Atlas Sound TRX Control WaveGuide high frequency director. This design provides smooth, even sound coverage
(65°H x 65°V). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the Atlas Sound PolyGuard protection circuit.
The SM82T includes an internally mounted 60 watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications and an 8O bypass.
Tech Data
Specifications
1" exit titanium high frequency compression driver
All ¼"-20 hardware inserts allow easy integration of "off-the-shelf" security hardware
Atlas Sound TRX WAVEGUIDET- A constant directivity style high frequency wave guide system provides accurate, even high frequency coverage
Compact, 2-way loudspeaker systems for exceptional performance in music and sound reinforcement systems
Conforms to 100HR salt spray test per ASTM B117
Five-year warranty
Highly efficient 8" HYCONET treated woofer
OMNIMOUNTT 20 series compatible
POLYGUARDT` high frequency circuit diverts damaging transient signals to protect the tweeter
Screwdriver adjustable 60 Watt 70.7V/100V transformer for distributed sound applications with 8O bypass
Weather-resistant construction for year-round indoor or outdoor use: UV-resistant, talc impregnated, polypropylene, injection molded enclosure, powder coated aluminum grilles and all brass hardware inserts
Height
16 1/2" (41.91 cm)
Width
9 1/16" (23.02 cm)
Depth
8 7/16" (21.43 cm)
Power Taps
1.9, 3.8, 7.5, 15, 30, 60 & 8O bypass
Shipping Weight
20.00 lbs (9.07 kgs)
Frequency Response
65Hz to 20kHz
Speaker Type
Surface Mount
Dispersion
65°H x 65°V
Sensitivity
92dB
Data Sheet
Owners Manual
CAD Drawing
