SM8CXT-W
8" Coaxial Speaker System, 70.7/100V/ 8ohm, Internal Transformer–White Finish
SM Series loudspeakers offer quality sound reproduction and contemporary styling. The SM8CXT-W features the SM8CXT60—a 150 watt loudspeaker that combines an 8" diameter, low frequency transducer and a 1" exit, compression driver. The speaker has a curvlilinear, polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. The low frequency transducer and the high frequency driver feature permanently aligned voice coils for low distortion performance. The copper coils have Polyimide voice coil formers.

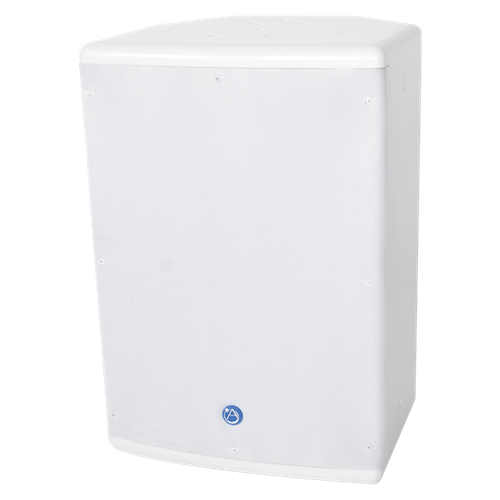

The SM8CXT-W features a wood enclosure with a metal grille. Internal hardware, for flying, includes multiple (12) 1/4"-20 inserts for overheard suspension in most any orientation.
A 90 degree conical pattern (2 kHz octave band) and amazing efficiency make the SM8CXT-W a perfect choice for a wide variety of applications including school auditoriums, gymnasiums, cafeterias, church sanctuary systems, and more.
Tech Data
Specifications
Attractive, heavy-duty grille assembly

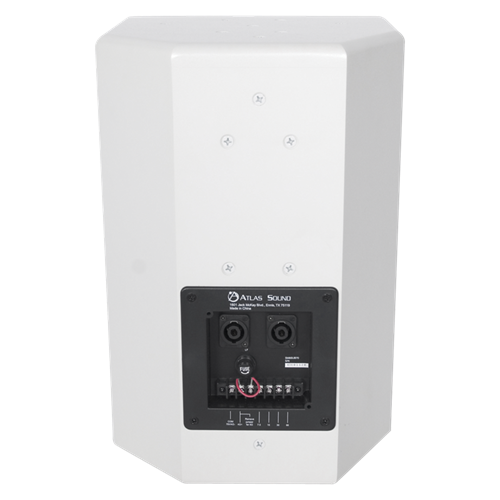

Barrier strip input for 70.7/100V/8 Ohm or parallel 4 pole Speak-onTM input for 8 ohm operation only
Durable White finish
Fuse protection for low and high frequency drivers
High performance Atlas Sound compression driver coaxial loudspeaker in versatile, flyable, wood enclosure
Includes internal, high efficiency 60 Watt 70.7/100V transformer (may be bypassed for 8 ohm operation)
Multiple (12) 1/4"-20 inserts, providing fly points for a variety of mounting configurations
Optional brackets for wall mounting
Pre-drilled with T-Nut inserts for OmnimountTM bracket wall mounting
Unique input panel allows use of standard 4" square box cover (Raco 753 or eq.) for applications where flex conduit is required for termination
Height
15 1/2" (39.37 cm)
Width
10 5/8" (26.9875 cm)
Depth
10 3/8" (26.3525 cm)
Shipping Weight
19.00 lbs (8.62 kgs)
Frequency Response
60 to 15 kHz
Power Taps
7.5, 15, 30, 60, 8 Ohm
Speaker Type
HIGH PERFORMANCE COAXIAL
Dispersion
90°
Sensitivity
92dB
CAD Drawing
