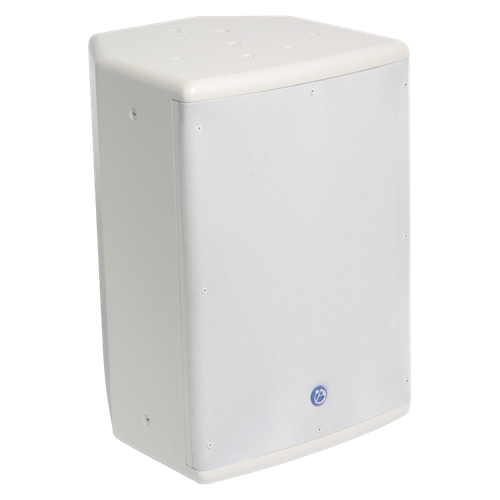

SM8SUB70-W
Surface Mount 8" Subwoofer System - White
The SM8SUB70 8" subwoofer system is perfect for restaurants, bars, and high-fashion retail outlets. The system utilizes a 8" woofer housed in a 915 cubic inch multi-angle, flyable, wood enclosure system to provide extended low frequency response with a wide variety of mounting options. (Not for outdoor use!).
Inserts are included for use with 1/4"-20 drop forge eyebolts, optional SM8CBKT-B /-W mounting bracket and OmniMountâ„¢ 30 series hardware.
An 18 dB/octave three-pole passive crossover eliminates the need for a separate electronic network or dedicated amplification to power the speaker. Its low crossover point (120Hz) nearly eliminates localization, allowing a designer to boundary-load the SM8SUB70-B near a wall or into a corner for maximum output, while maintaining even coverage throughout the space.
A premium 70.7V transformer allows the SM8SUB70 to be paralleled with any 70.7V commercial audio system to provide extended low frequency response and more overall audio impact for foreground music systems. (Unit is also 8ohm compatible). Perfect for use with other SM series full range loudspeakers Available In black (SM8CXT-B) or White (SM8CXT-W)
Tech Data
Specifications
Attractive, yet heavy-duty grille assembly

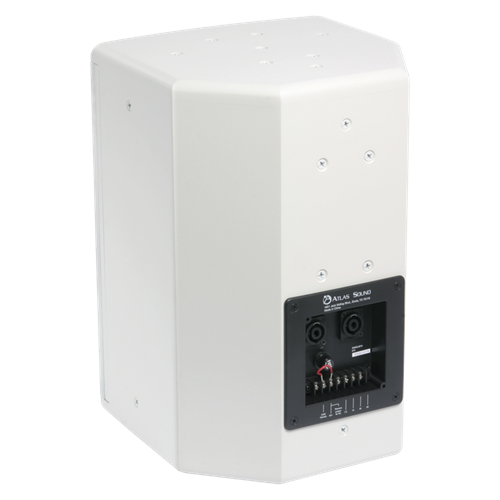

Barrier strip input for 70.7/100V/8 Ohm or parallel 4 pole Speak-OnT input for 8 Ohm operation only
Durable white, rough-coat finish
Fuse protection for driver
Includes internal high efficiency 60 Watt 70.7/100V transformer (may be bypassed for 8 Ohm operation)
Multiple 1/4"-20 inserts, providing fly points for a variety of mounting configurations
OmnimountT compatible
Optional bracket for wall mounting
Unique input panel allows use of standard 4" square box cover (Raco 753 or eq.) for applications where flex conduit is required for termination
Height
15 1/2" (39.37 cm)
Width
10 5/8" (26.9875 cm)
Depth
10 3/8" (26.3525 cm)
Shipping Weight
26.00 lbs (11.79 kgs)
Frequency Response
55Hz to 100Hz
Power Taps
7.5, 15, 30, 60
Speaker Type
Sub
Dispersion
Omni
Sensitivity
89dB
