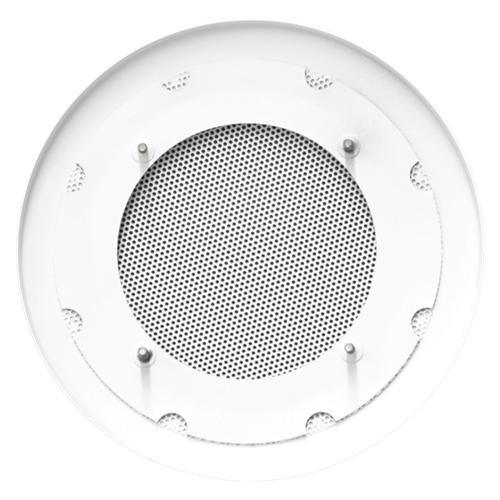

T720-4
Sculptured Concealed Mounting 4" Torsion Baffle
Round, recessed baffle Model T720-4 features a contoured design with a raised perforated screen creating a sculptured shape to coordinate with lighting fixture trims.
Torsion-spring installation and concealed loudspeaker studs provide for an uninterrupted appearance.
Model mounts 4" (102mm) loudspeakers and are of welded CRS (20-gauge ring, 22-gauge screen).
Model is finished in textured white epoxy.
Tech Data
Specifications
Attractive Textured White Epoxy Finish
Baffle Include Provisions to Accommodate Ceiling Depths Up to 2" Deep
Specifically Designed for Quick, Efficient, and Economical Recessed Installation of 4" Loudspeakers
Torsion Springs Provide Quick and Efficient Installation
Welded CRS Construction Eliminates Vibration and Rattle
Depth
9/16" (1.43002 cm)
Diameter
7 3/8" (18.7325 cm)
Shipping Weight
1.00 lb (0.45 kgs)
Mounts Baffle
(EZ)E410 Series
Data Sheet
CAD Drawing
