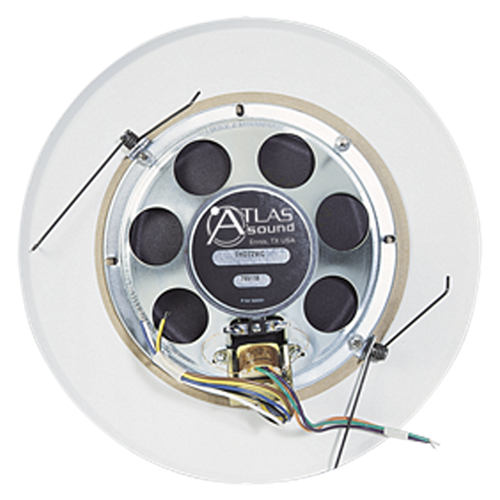

THD72WC
Pre-assembled baffle, 10 oz. Loudspeaker, 25/70.7V-4W xfmr/T62-8
THD72WC are cost-effective 8" dual-cone loudspeaker assemblies which deliver wide frequency response for general purpose voice and music reproduction. Units are shipped complete with grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense. HD Series models have a power rating of 25 watts and are mounted to a T62-8 torsion mount baffle. It will accept optional protective enclosures and mounting accessories to meet installation and code requirements
Tech Data
Specifications
Equipped with 25, 70.7, 25/70.7V Transformer
EZ Versions Available with Pre-Mounted Brackets and Rails for Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
Installation Time and Expense with Pre-Assembled Loudspeaker, 15 or 25W Transformer & Baffle Combinations
Depth
2 7/8" (7.3025 cm)
Diameter
8" (20.32 cm)
Shipping Weight
4.50 lbs (2.04 kgs)
Frequency Response
100 Hz - 10 kHz, ± 1.5dB
Power Taps
25/70.7V
Speaker Type
Treated Paper
Dispersion
105°
Sensitivity
97dB Peak, 94dB Average
Data Sheet
