TSD-DCPDV
Variable DC Power Distribution

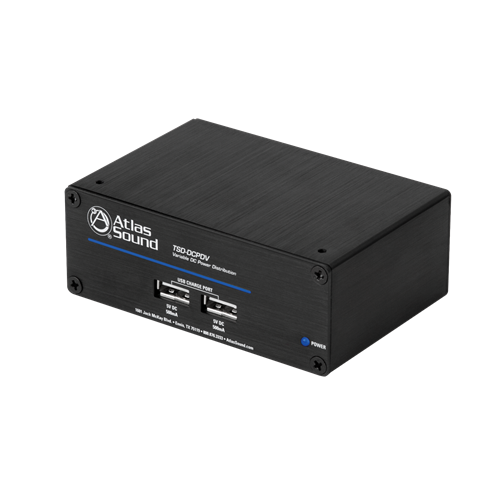

The TSD-DCPDV is designed to distribute power to TSD devices or other equipment requiring DC power and is also ideal for use with wireless microphones that typically require 12-18VDC PSUs.

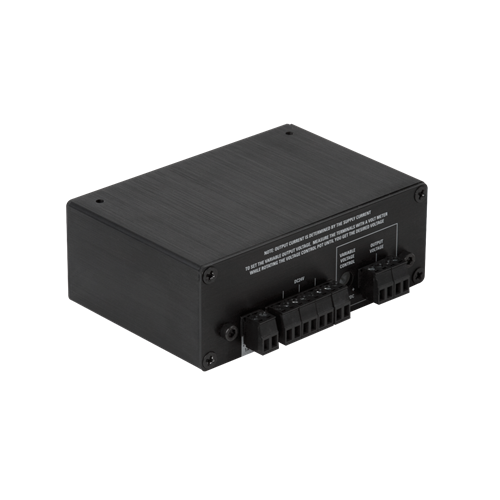

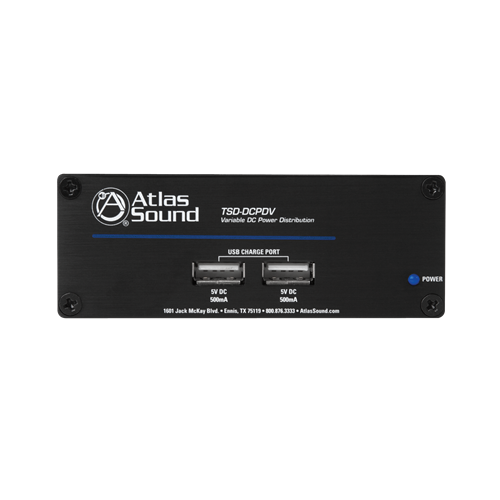

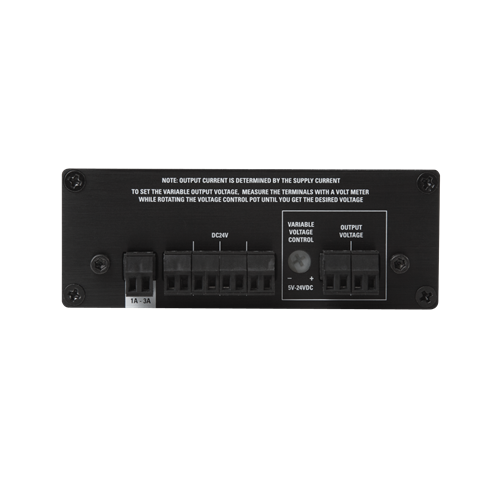

Rear panel includes one 9-24V input for a user selectable power supply up to 2500mA, four fixed 24V outputs and two 5-24V variable outputs. Voltage for variable outputs is adjusted from a secure trim pot. In addition, two front panel USB ports are available for charging other devices or for USB style rack lighting.
Tech Data
Specifications
Power Distribution for Multiple TSD's From a Single Power Supply
1 in 6 Out Configuration
Four (4) Independent 24V Outputs
Two (2) 5V to 24V Variable Outputs
Two (2) 5V DC USB charge ports
DC Filtering and Isolation Per channel
Separate Ground Connections
Meets Energy Star Standards
DC Voltage input
1A-3A, 24V DC, 3A Max
DC Voltage Output Fixed
24V DC, Current Output Related to Input Power Supply and Load
DC Voltage Output Fixed USB
5V DC, 500mA Each Power Supply and Load
DC Voltage Variable
Qty 2, Ports 1 Adjustable Voltage, Variable DC Output 5V - 24VDC, 500mA Each
Dimensions
Height
1.5" (3.81 cm)
Width
4" (10.16 cm)
Depth
2.5" (6.35 cm)
Weight
6oz., .165kg
