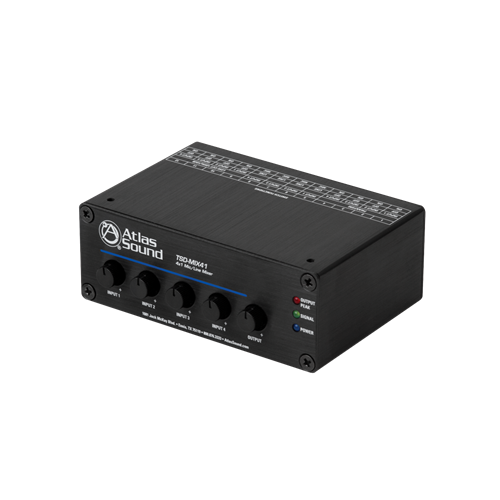

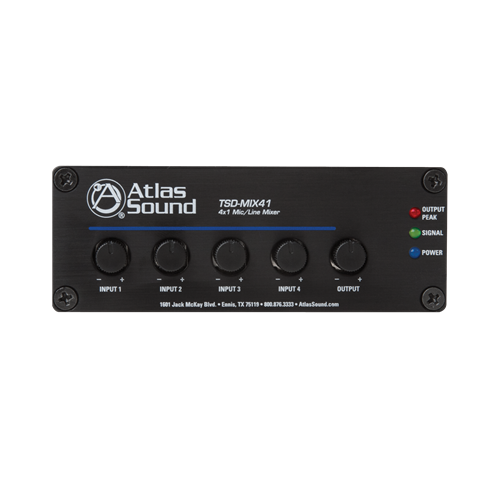

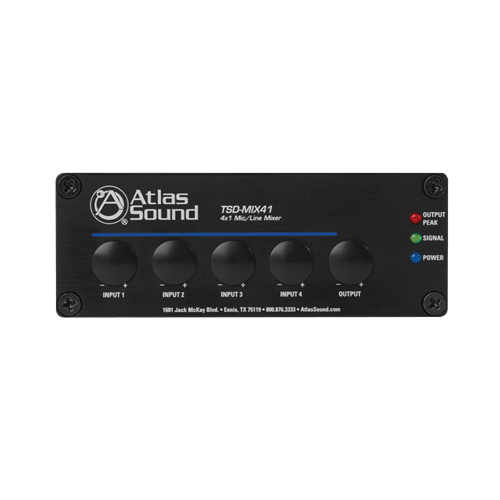

TSD-MIX41 4 x 1 Mic/Line Mixer
The TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 is especially useful for combining similar sources such as choir microphones to a single mixer channel. The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with Atlas Sound amplifiers. Other applications include restaurants, conference rooms, and schools.
Each input is mic/line switchable with phantom power provided for condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter @ 125Hz also is available on each input to minimize bass rumble and low frequency feedback.
Tech Data Specifications
  • Four (4) Balanced Mic/Line Inputs
  • Four (4) Professional Grade Microphone Preamps with Switchable
    24V Phantom Power
  • Up to 50dB Mic Gain Per Input
  • 12dB/Octave Low Cut Filter @ 125Hz
  • Balanced Line Output
  • Input Peak & Signal Indicator LED's
  • Variable Output Limiter
  • High Gain Output for Driving Long Balanced Lines
  • Separate Ground Connections

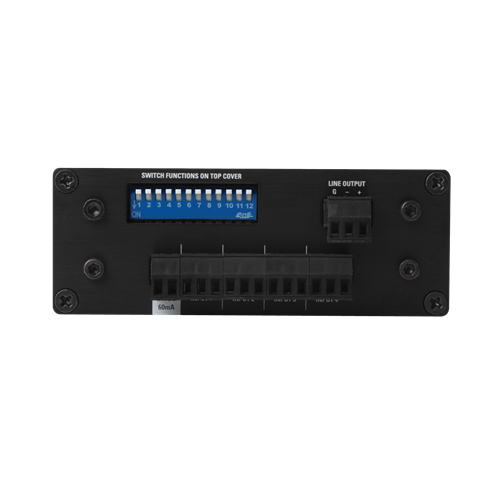

  • Removable Phoenix Style I/O Connectors
  • Security Covers Included for All Front Panel Controls
  • Meets Energy Star Standards
