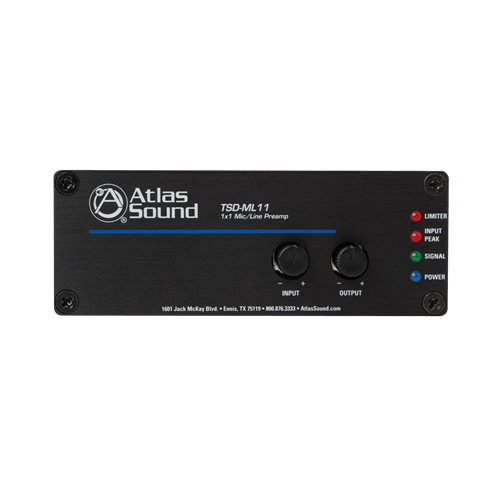

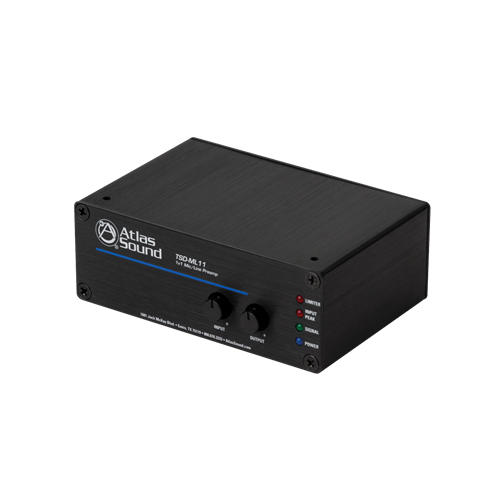

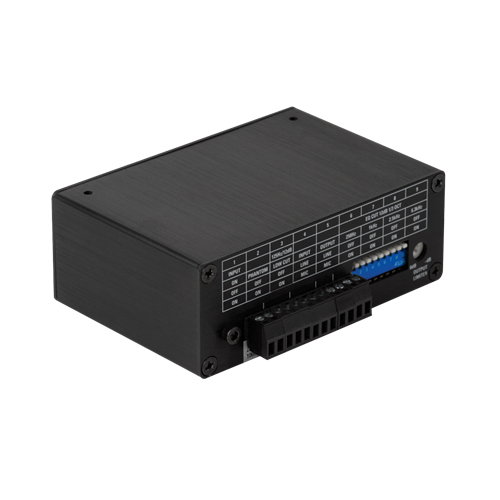

TSD-ML11 1 x 1 Mic/Line Preamp
The TSD-ML11 high headroom, low noise mic preamp is perfect for use as a standalone preamp or in conference room systems, board meetings, courtrooms, council chambers, and public forum systems that need mute and push to talk microphone functions.
Unit features switchable phantom power for powering condenser microphones and has four EQ cut filters centered at common frequencies to eliminate feedback and control voice shaping. The variable mic preamp helps further eliminate noise for quiet operation as well as reduces unwanted coloration and changes in tonality and a 12dB @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system and ensure focus and clarity stays on voice sound spectrum. An output limiter/compressor is also included for system protection to avoid clipping and eliminate distortion. Mic Mute and Mic On control allows microphones in the system to be push-to-talk enabled or muted for speaker priority.
Tech Data Specifications
  • High Quality Microphone Preamp with Switchable 24V Phantom Power

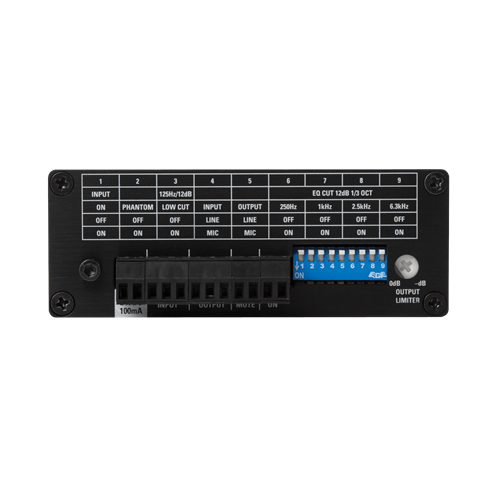

  • Mic/Line I/O via Removable Phoenix Style Connector
  • Four (4) Preset Frequency Notch Filters For Tone and Feedback Control
  • 125Hz /12dB Low Cut Filter
  • Variable Output Limiter/Compressor
  • Mic Mute/Mic On Via Contact Closure
  • Input Signal & Peak Indicators
  • High Gain Output for Long Distance Signal Transmission
  • Separate Ground Connections
  • Security Covers Included for All Front Panel Controls
  • Meets Energy Star Standards
