TSD-PA252G
Two Channel Power Amplifier
The TSD-PA252G is a reliable, cost effective 4Ω stereo amplifier well suited for higher power amplification requirements.

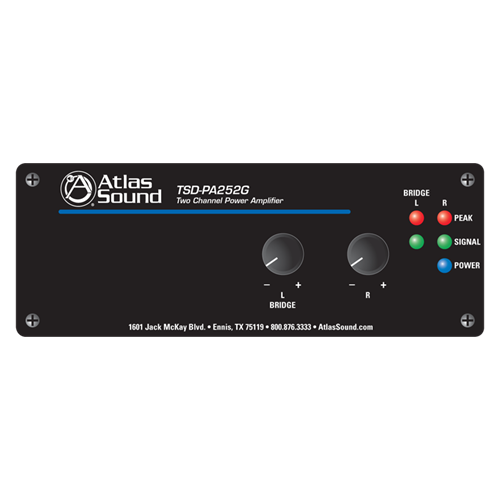

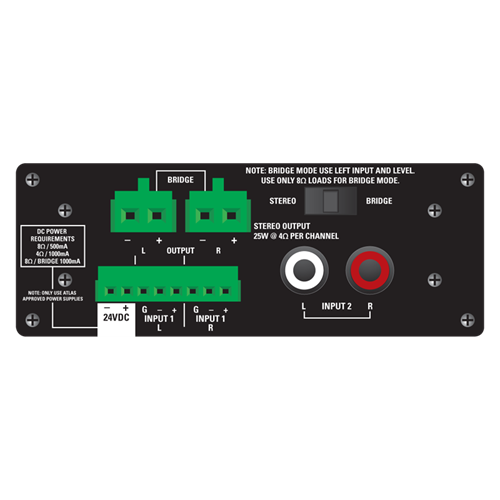

Output is 25W per channel at 4Ω or 50W bridge mono at 8Ω. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs.
Tech Data
Specifications
25W per Channel into 4O
50W Bridged into 8O
Two (2) Balanced Inputs
Dual RCA Inputs
Power Output
12W @ 8O x 2 CH, 25W @ 8O x 2 CH, 24W @ 4O x 2 CH, 50W @ 8O Bridged
Unbalanced Input Impedance
10KΩ
Input Level
316mV (-10dBV)
Balanced Input Impedance
10KO Balanced, 5KO Unbalanced
Line Input Level
500mV (-6dBV) Balanced
Frequency Response
20Hz - 20kHz (+/-3dB)
THD
.2% & 1kHz
Signal to Noise Ratio
80dBV
24VDC Power Requirements
500mA
Dimensions
Height
1.5" (3.81 cm)
Width
4" (10.16 cm)
Depth
5.2" (13.2 cm)
