UKT70-2C-U161-8

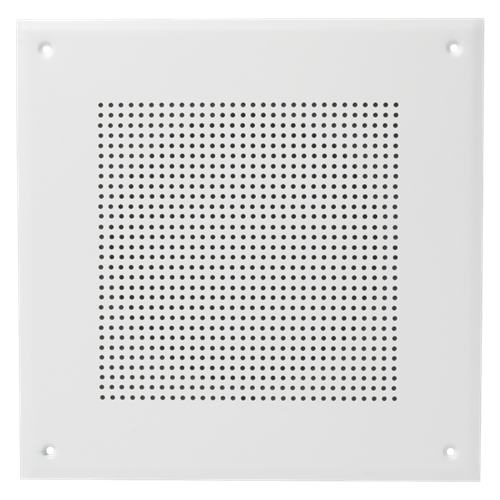

UL Listed Dual Voice Coil 8" Loudspeaker for Fire Protective Signaling, 70V Transformer, U161-8 Baffle
Atlas Sound's UKT70-2C-U161-8 are 8" diameter dual voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, dual factory-mounted 70.7V transformers, 6" color-coded leads, DC blocking capacitors and a 161-8 baffle.
To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosures
Tech Data
Specifications
Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
Selection of UL Approved, Companion Enclosures is Offered
UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
Dual 1" Voice Coils
Data Sheet
