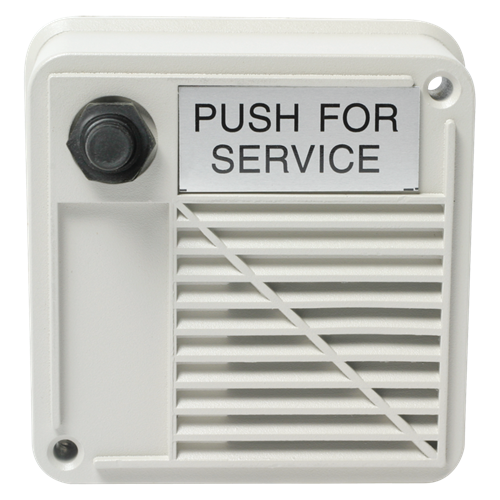

WPVT-6SN Outdoor Surface Mount Intercom Stations with Compression Driver and Call Switch 2W 25V
WPVT-FN/WPVT-SN Series are flush- and surface-mounting, weather-resistant, electroacoustic signaling devices respectively. They are ruggedly constructed to withstand moisture, corrosion, dust, vibration, and temperature extremes from -30° to 150° F. Stations include high-intelligibility, environment-resistant compression driver, choice of semirecessed enclosure or flush face plate, a variety of mounting accessories, and a weatherresistant call button for protected call-in signalling capability. Stations are available in 15 or 2 watt versions with optional 25 volt transformer. The 8 ohm compression driver is the patented VT Series model with water-sealed, die-cast zinc construction and integral, exponential sound projector to provide clear audibility. Call switch is a momentary-action, heavy-duty push button with a contact rating of 3 amps. The call button has a SPDT-type switch which is protected by a weather-resistant rubber boot to provide durable and safe operation in outdoor and high humidity environments.
WPVT-SN Series are compact assemblies size 41/4" SQ x 31/8" D (108 x 79mm) which are designed for semi-recessed installation. WPVT-FN Series are attractively designed face plates size 6" SQ x 33/16" D (152 x 81mm) for flush installations. Both styles will accept a variety of mounting accessories to meet varying installation requirements (see back page). Enclosures and face plate are die-cast construction finished in neutral grey epoxy.
