ZC2PRO
IP Addressable Dual Zone Interface with Line Level, 8Ω, 25V, 70.7V Output
The ZC2PRO Zone Controller Pro is a 2 Zone analog gateway for Atlas Sound IP paging systems. This model is compatible with Atlas Sound's ControlKom© and Singlewire's InformaCast© software.

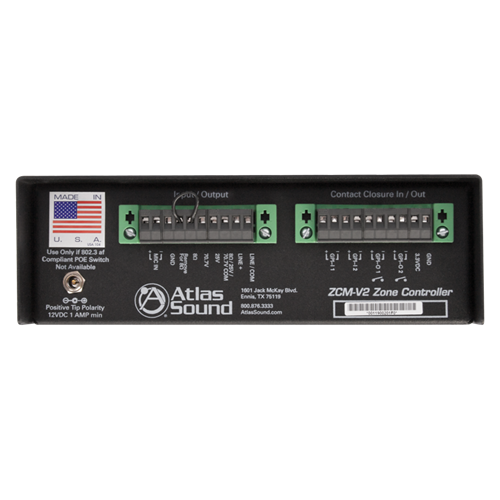

The ZC2PRO provides a line level output to connect to Atlas Sound commercial amplifiers and an 8Ω, 25V, 70.7V amplified output to drive small analog speaker zones. It also includes 2 GPI Inputs, 2 GPI Outputs and Microphone input for talk back applications. Power can be supplied via plug-in transformer (IPS-PSU) or by 802.3af compliant PoE network switches.
All control features of the ZC2PRO are software controlled.
Tech Data
Specifications
Use with ControlKom® or InformaCast® software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
Also compatible with SIP (session initiation protocol) VoIP systems. Contact Atlas Sound for SIP configuration info.

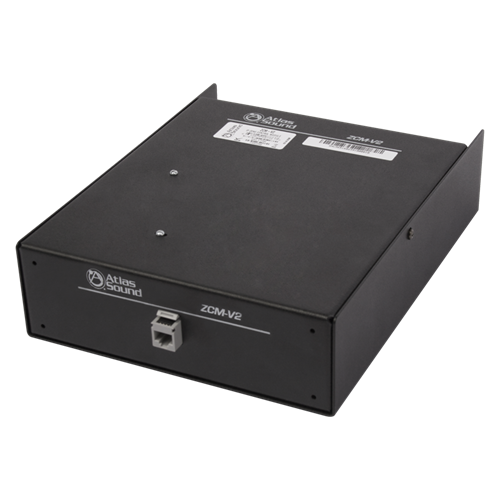

Modular 2RU design allows for easy rack mounting and cable access
Line Level(600O), 8O, 25V, and 70.7V Outputs
2 GPI Contact Closure Inputs, and 2 GPI Relay Outputs.
Height
2.56" (65mm)
Width
8" (203mm)
Depth
10" (254mm)
Rack Space
2RU (If ZCM-V2FP is Used)
Power Rating
9 Watts RMS into an 8O Load w/ 12VDC Input
Inputs
RJ-45 Female on PCB
Outputs
600O, 8O, 25V, or 70.7V
Power Source
IEEE 802.3af Compliant POE Network Switches / Local 12VDC - 18VDC PSU
Network Control
Multicast Enabled Networks
Relay Output
50V @ 500mA Max
Input Minimum
1mA to Run on 50V Max
